    ISO9001 380V 50HZ 500PPM Small Scale Diaper Making Machine

    Ask Lasest Price
    Brand Name : HAINA
    Model Number : HNJX-LK500
    Certification : ISO9001:2015
    Price : Negotiatable
    Payment Terms : T/T
    Supply Ability : 70 Machines Per Year
    Delivery Time : 5 Months After Receiving Deposit and Confirm Product Drawing
    • Product Details
    • Company Profile

    ISO9001 380V 50HZ 500PPM Small Scale Diaper Making Machine

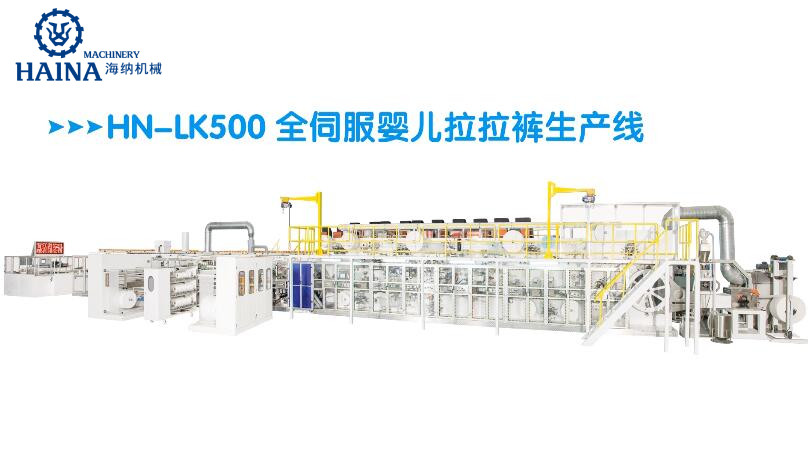

    High Technology Fast Performance Pant Type Baby Diaper Production Line


    MAIN PARAMETERS
    Working Speed (production speed)500pcs/minute
    Power Supply380V 50/60HZ, Tri-phase
    Installation Power Capacity380KW
    Air Consumption1800~4800l/minute
    Air Pressure0.6-0.8Mpa
    Qualified Rate≥97% (excluding scrap caused by hot melt, materials splicing or joint)
    Efficiency≥85%
    Machine Weight100 Tons approximately
    Machine Size (meters)L: 40 W: 8 H: 4.5
    CONFIGURATION & OPTIONS
    Product StructureTop sheet hydrophilic nonwoven, leak cuff hydrophobic nonwoven, ADL, Fluff core pad, SAP, Upper & lower tissue paper, Back sheet, Waist nonwoven, Leg & leak cuff elastics, Waistband
    Product SizeM, L, XL, XXL
    Product SpecificationWidth: 385-420mm Length: 400-550mm


    Excellent After-sales service

    1. You can send technicians to our factory to learn operating the machine before delivering
    machine for 1-2 month.
    2.When the machine arrive at your workshop, we will send technician to your workshop to
    install, test the machine and train your workers
    3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.
    4. Life-long after-sales service for machines.

    Why choose us?

    1. We are Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.
    2. We can do full support for your complete project, from machine's manufacturing and
    installment, supplying raw materials, designing your factory layout, workers training to
    final production.
    3. We have served customers from over 100 countries in the world till now.
    4. We can offer you very good machines and service at good price. (we have our own parts processing workshop)
    5. We are factory manufacturer, not trading company.


    Packing & Delivery

    Packing: Standard export package:pant anti-rust oil on machine, wrap machine with plastic film,
    then put machine in wooden cases.
