    HAINA 300pcs/Min 800*650mm Disposable Diaper Production Machine

    Ask Lasest Price
    Brand Name : HAINA
    Model Number : HNJX-CK300
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 6 Sets per 1 Month
    Delivery Time : 180 work days
    • Product Details
    • Company Profile

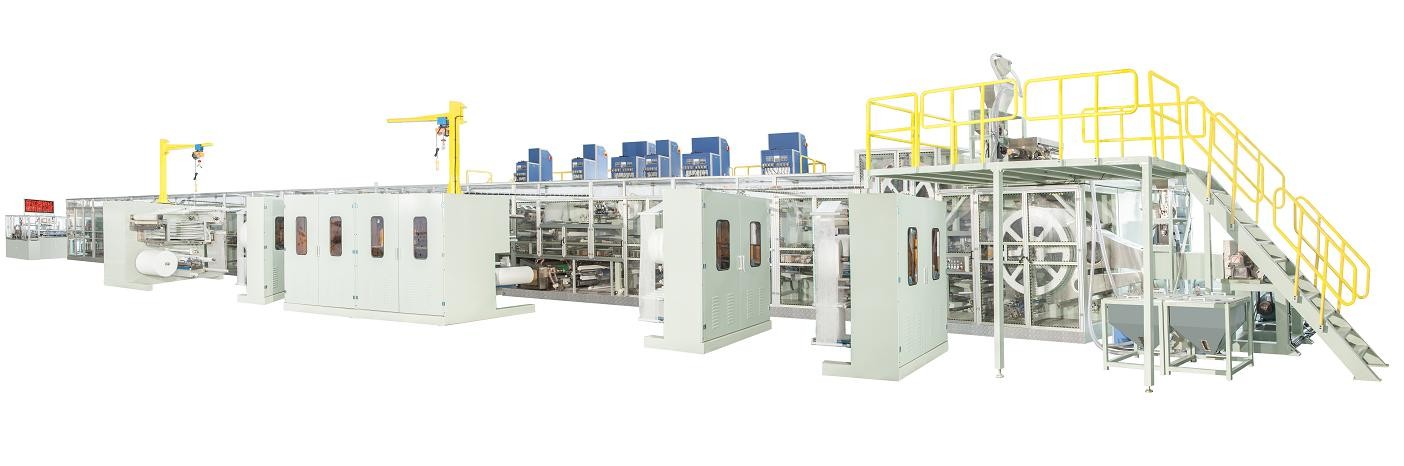

    HAINA 300pcs/Min 800*650mm Disposable Diaper Production Machine

    Full Automatic High Performance Disposable Adult Diaper Making Machine


    HAINA 300pcs/Min 800*650mm Disposable Diaper Production Machine

    Configuration&Options


    Product structureLeg cuff hydrophobic nonwoven.Top sheethydrophillc nonwoven.ADL,Cotton core(SAPmixed)Side tape,Waistband,Frontal tape,Back sheet
    Product sizeM:680*450(mm) L:800*650(mm) XL:950*760(mm)
    Program systemServo driven,intelligent HMI touch screen man-machine LCD interface.
    Tension systemTension control with buffer system,automatic web guiding system.to ensure materials stable working at ZERO speedsplice
    Driven systemServo drive.digital size chango.ensure run synchronously at full process.
    Safety systemSafety guard for operating side,emergency stop switch,security identifier,safety pull wire at driven side.
    Packaging systemAuto stacker to be defined by customor need (dual push dual exit),the stacking range:8-16pcs/pack adjustable.
    Web guiding systemGemany BST/USA FIFE
    Customized function available

    Main Parameters

    1. Strong firm structure, face board 30mm thickness after CNC treated, frame is 60mm steel square bar, bottom frame is 150mm×150mm bar, driven cabin is 1100mm width, easy for the maintenance, pedal equipped.
    2. Mill system:Saw-type high speed mill, treated, untreated & semi-treated pulp available.
    3. Fluff Forming system,Double drummer, continue type , anatomic core.Separated chambers forming: distribution layer(Non-SAP),Mix-layer(SAP mixed),bottom layer(non-SAP).
    4. SAP spray system:Flat belt pushing, mixing-up fluff.
    5. Bottom tissue applicator
    6. Upper tissue applicator
    7. ADL applicator
    8. Leak-cuff structure
    9. Philic nonwoven applicator
    10. Elastic waist applicator
    11. Back nonwoven applicator
    12. PE film applicator
    13. Frontal tape applicator
    14. Leg elastic spray
    15. Side tape applicator
    16. Side tape inner fold unit
    17. Arc shape cutter unit
    18. Wastage separated and collection unit
    19. Three rolls compressed, pneumatic given pressure.
    20. Product shape die cut
    21. Product cross fold
    22. Three-rolls compressed device.
    23. Product final cut
    24. Product tri-fold
    25. Rejecting outlet
    26. Array out with counting function(direction pending)
